3000kN CNC Wheel Press For Wagon Wheelset Production And Maintenance

CNC Wheel Press for Wagon Wheelset Production and Maintenance

Hubei Heqiang Machinery is the leading manufacturer of wheel set and bearing press machines in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.

Application scope of the CNC Wheel Press:
This Wheel set Press is applicable for the assembly and disassembly of the freight wagon wheelsets. One time positioning without reversal of the axle to proceed two wheels' mounting/dismounting. With advanced measurement unit. It can generate, record, save and print the pressing curve. Only required one operator to operate the wheel press machine.

Technical parameters of the Wheelset Press:

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)

Machine features of the Wheel Mount Press:

• The Wheel Press-fitting Machine is a horizontal hydraulic wheel press and will be installed in a foundation pit.
• Gantry frame structure, with high strength, good rigidity and less deformation.
• The Wheel Press Machine is able to assemble or disassemble two wheels on the axle without turning the axle.
• Double cylinders design. Only need one positioning without reversal of the axle to proceed two wheel mounting/dismounting.
• The Wheel Press-Mounting Machine is equipped with special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
• Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy. The wheel mounting requires high accuracy and high pressing force. In order to ensure that the parts blocking the wheel are subjected to the force completely symmetrical, we adopts cylindrical ram for mounting wheel, not the side opening baffle.
• The Machine is equipped with an axle support trolley for wheelset loading and unloading. It will exit from the Machine during the mounting/dismounting operation.
• The whole operation is controlled on the industrial computer and PLC. the computer can record and export the pressing curves.
• The Wheel Assembly Machine is designed with acoustic-light alarm to ensure the safe and reliable operation.

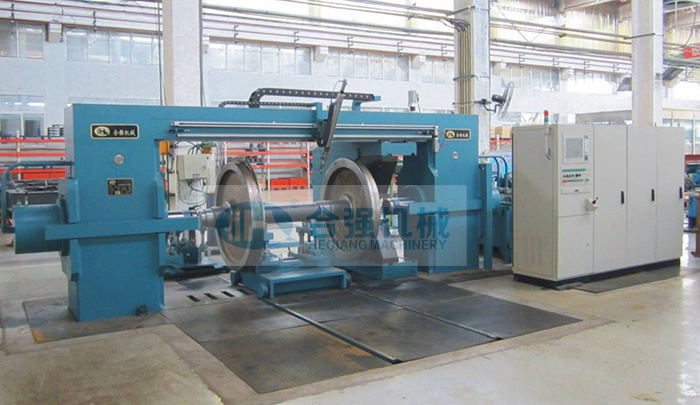

3000kN CNC Wheel Press

Wagon Wheelset CNC Wheel Press

3000kN Wheelset Press
